磁吸式流量计

技术参数：

DT-TDS 200

测量范围：±32 米/秒

分辨率：0.001 米/秒

精度：

DN ≥50 毫米：流速 > 0.3 米/秒时为±1.5% 读数

DN <50 毫米：流速 > 0.3 米/秒时为±3.5% 读数

重复性：±0.5% 的测量值

工作时间：约 10 小时

防护等级：IP52

产品列表：

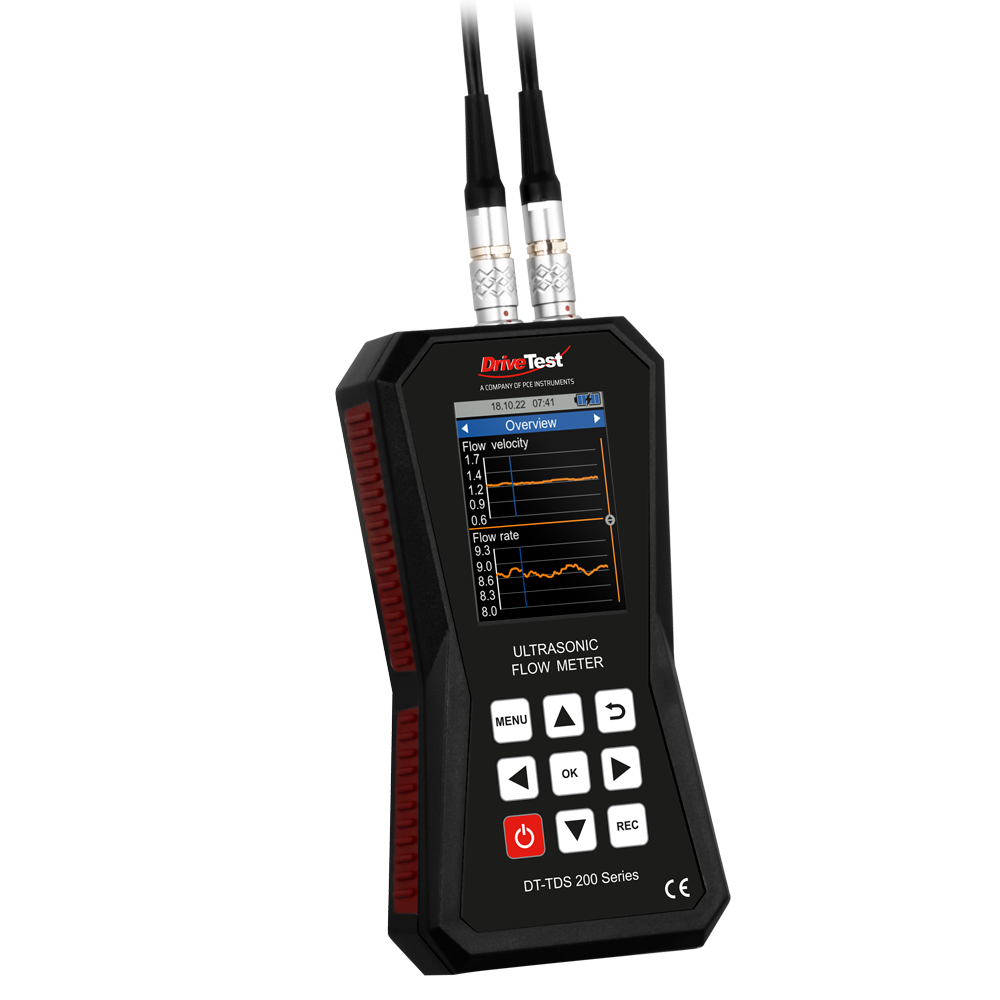

DT-TDS 200: Handheld device for flow measurement only

DT-TDS 200+: Advanced handheld device with heat quantity measurement

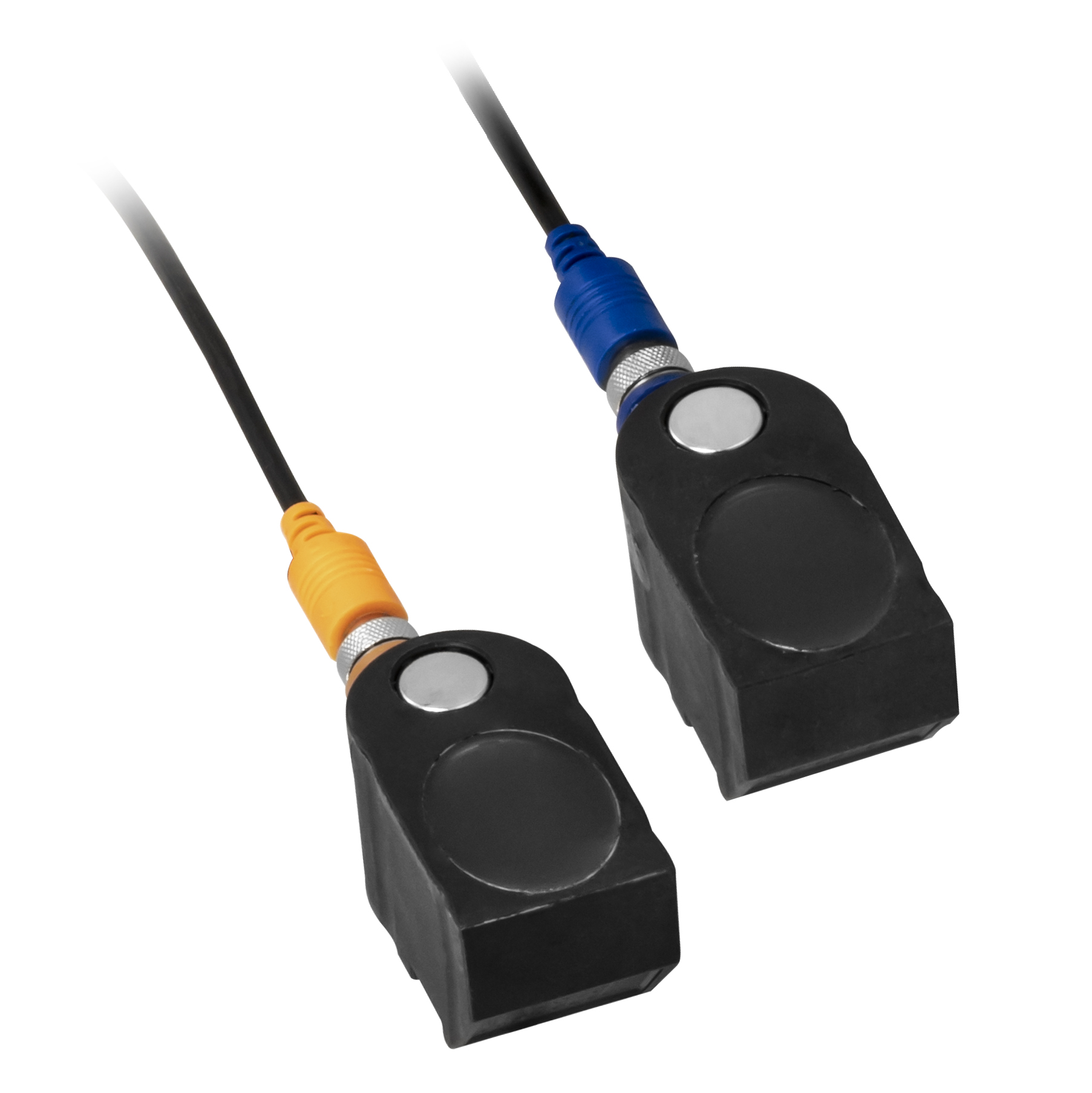

DT-TDS 200 S Sensor: Pipe diameter: 15 to 100 mm / 20 to 108 mm

DT-TDS 200 M Sensor: Pipe diameter: DN 50 to 700 / 57 to 720 mm

DT-TDS 200 L Sensor: Pipe diameter: DN 300 to 6000 / 300 to 6000 mm

DT-TDS 200 SR Sensor: Pipe diameter: DN 15 to 100 / 20 to 108 mm, mounted on rail

DT-TDS 200 MR Sensor: Pipe diameter: DN 50 to 700 / 57 to 720 mm, mounted on rail

TF-RA330: Thermocouple Type T, 1 m

TF-RA330-3: Thermocouple Type T, 3 m

TF-RA330-5: Thermocouple Type T, 5 m
